RICH SOLAR 200 Watt Solar Kit
RICH SOLAR 200 Watt Solar Kit
Couldn't load pickup availability
RICH SOLAR 200 Watt Solar Kit
Power your RV, camper, or off-grid setup with the RICH SOLAR 200 Watt Solar Kit. Designed for simplicity and durability, this kit delivers reliable solar energy wherever you go. It’s ideal for weekend camping, mobile power needs, or as a starter system for off-grid energy independence.
RICH SOLAR 200 Watt Solar Kit Features
High Efficiency Panels – Built with Grade A monocrystalline solar cells for excellent power conversion and performance in all weather conditions.
Durable Aluminum Frame – Corrosion-resistant frame designed for extended outdoor use, perfect for mobile or remote installations.
Adjustable Mounting Brackets – Included Z-brackets allow flexible, secure installation on flat surfaces like RV roofs or cabins.
Expandable System – Add more panels to grow your setup over time without overhauling your system.
Plug-and-Play Connectivity – Comes with pre-wired connectors and all needed cabling, making setup quick and easy.
RICH SOLAR 200 Watt Solar Kit Applications
- RVs and campers – Keeps your onboard batteries charged and powers lights, fans, and small electronics during your trips.
- Cabins and tiny homes – Perfect for providing off-grid energy to essential devices in small structures.
- Emergency backup power – Reliable solar power source to charge batteries during blackouts or grid failures.
- Tailgating and events – Easily powers coolers, lights, and entertainment gear at outdoor gatherings.
- Battery maintenance – Keeps your 12V battery topped off and ready to use even when idle or in storage.

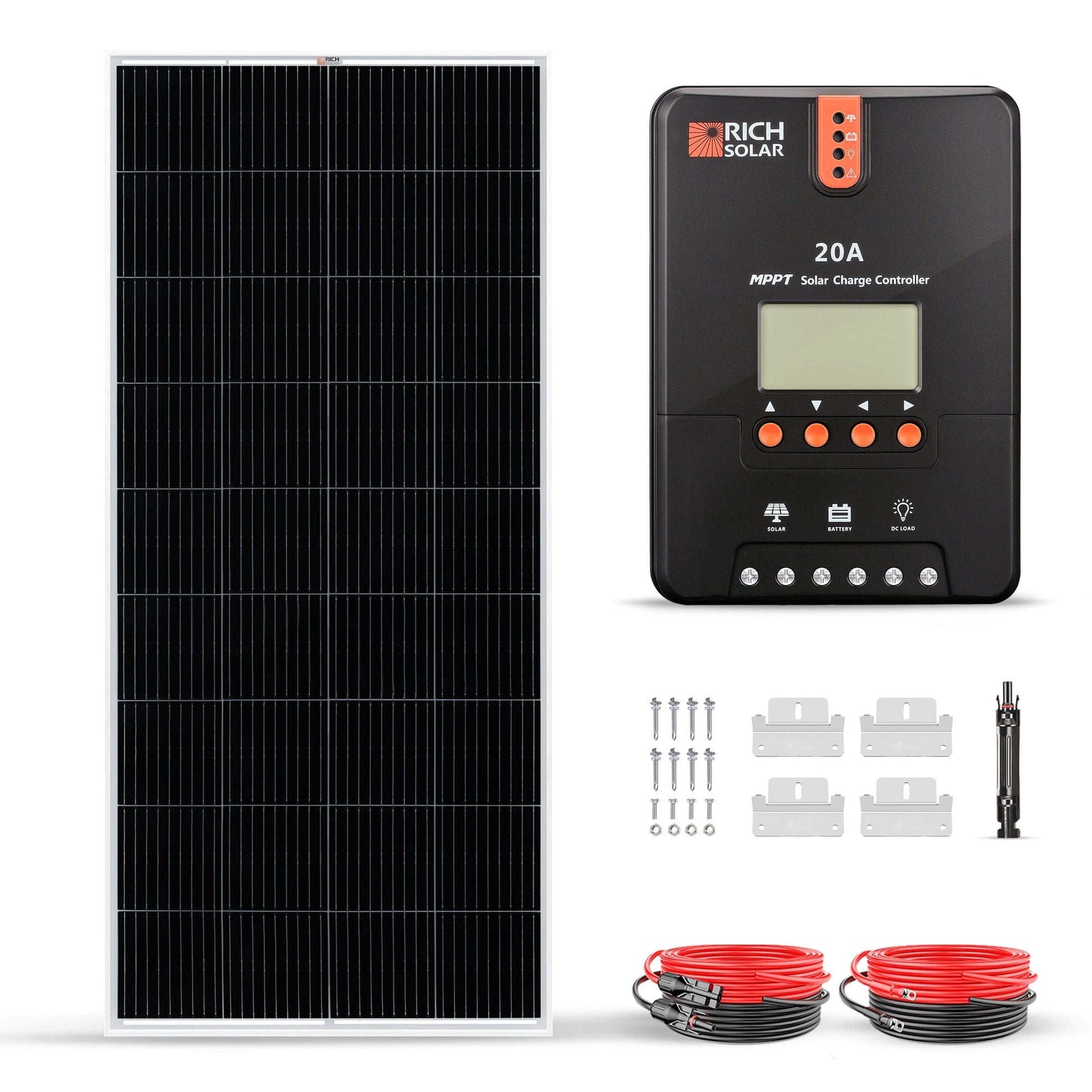

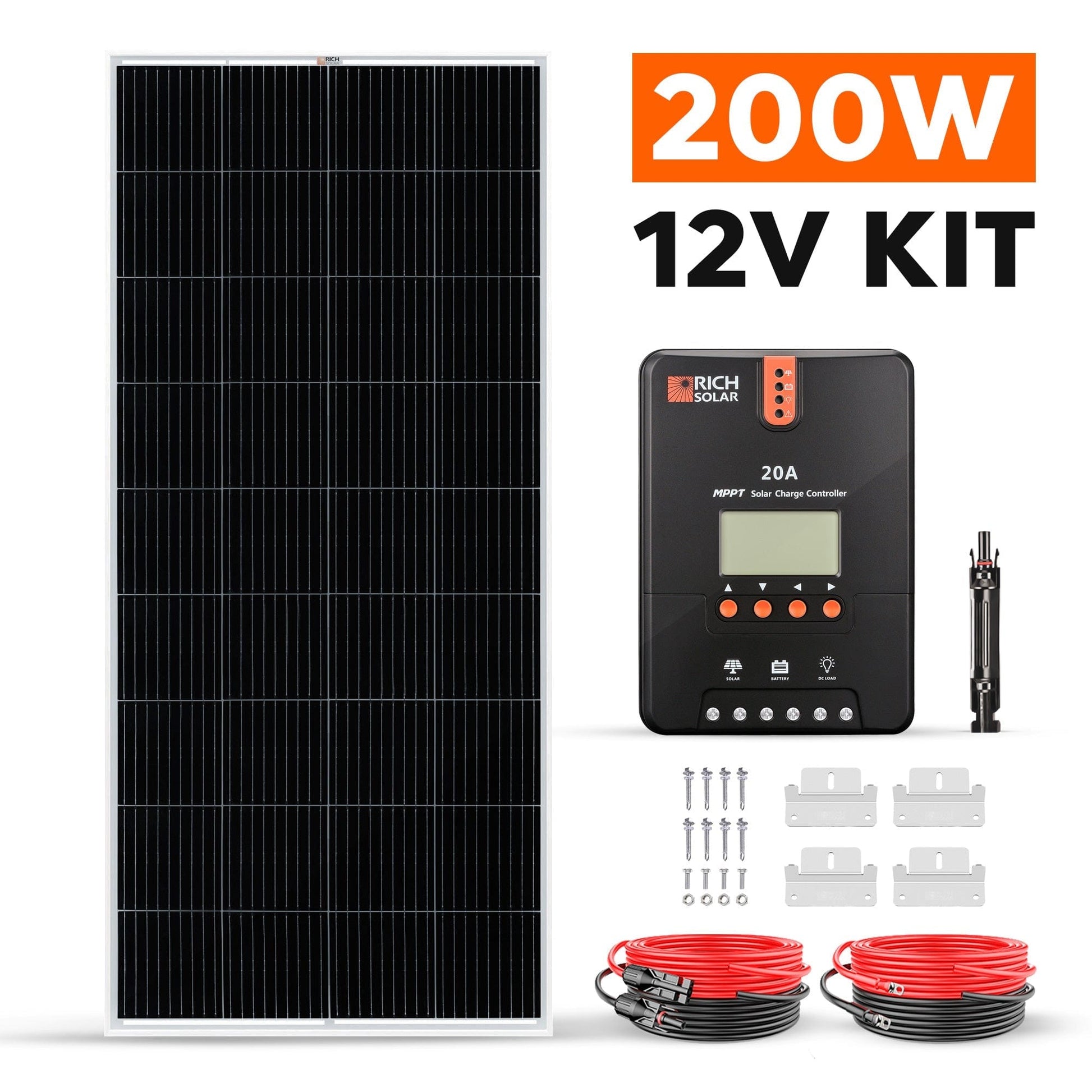

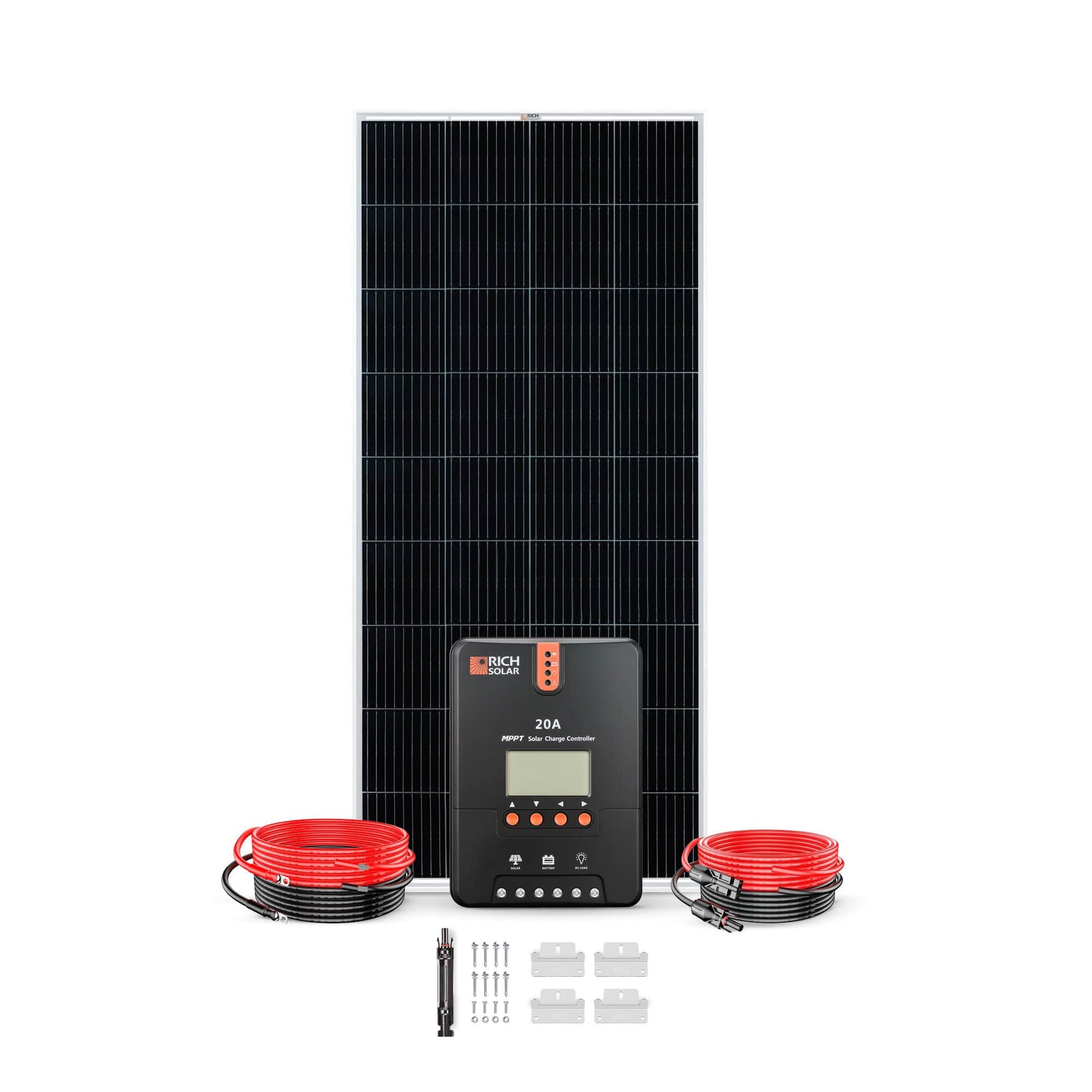

What's Included
Everything you need is included with your product.
- 1 x 200 Watt Monocrystalline Solar Panel(RS-M200)
- 1 x 20A MPPT Solar Charge Controller(RS-MPPT20)
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
- 1 x 10' #10 Gauge Battery Cable (Red), connects the controller to the battery(RS-1010)
- 1 x 10' #10 Gauge Battery Cable (Black), connects the controller to the battery(RS-1010)
- 1 x Mounting Z Brackets (one set)(RS-ZB4C)
- 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
RICH SOLAR 200 Watt Solar Kit Specifications
MEGA 200 Watt Solar Panel
| Category | Specifications |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Nominal Operating Cell Temp (NOCT) | 113 +/-35° F |
| Temperature Range | -40 ~ +185°F |
| Weight | 23.6 lbs |
| Dimensions | 58.7 x 26.8 x 1.2 in |
20 Amp MPPT Solar Charge Controller
| Category | Specifications |
| Nominal System Voltage | 12V/24V Auto Recognition |
| Rated Battery Current | 20A |
| Rated Load Current | 20A |
| Max. PV Input Short Current | 25A |
| Max. Battery Voltage | 32V |
| Max Solar Input Voltage | 100 VDC |
| Mounting Oval | 0.30 x 0.18 in |
| Net Weight | 3.08 lb |
| Discharge Circuit Voltage Drop | = 0.15V |
| Overall Dimensions | 8.27 x 5.94 x 2.34 in |
Frequently-Asked Questions
How long does it take to install the kit?
Most users can set it up in under an hour using the included mounting hardware and pre-wired connections.
Can I upgrade this system later?
Yes, this kit is expandable. You can add more solar panels or upgrade to a larger charge controller if needed.
Is this kit compatible with lithium batteries?
Yes, the included MPPT charge controller supports lithium, AGM, gel, and flooded lead-acid batteries.
Do I need to buy anything else?
Everything needed to get started is included. You’ll only need a 12V battery if you don’t already have one.
