RICH SOLAR 1200 Watt Solar Kit
The RICH SOLAR 1200 Watt Solar Kit is a comprehensive off-grid solution designed for RVs, cabins, boats, and remote installations. This 24V system includes six high-efficiency 200W monocrystalline panels, a 60A MPPT charge controller, a 3000W pure sine wave inverter, and two 100Ah LiFePO₄ batteries, providing reliable and sustainable power for various applications.
RICH SOLAR 1200 Watt Solar Kit Features
High-Efficiency Monocrystalline Panels – Six 200W panels with 9 busbars each deliver optimal power output and performance.
Durable Construction – Tempered glass and anodized aluminum frames ensure long-lasting durability and resistance to harsh weather conditions.
Advanced 60A MPPT Charge Controller – Optimizes charging efficiency and supports various battery types, including lithium, AGM, and lead-acid.
3000W Pure Sine Wave Inverter – Provides clean and stable AC power for sensitive electronics and appliances.
Two 100Ah LiFePO₄ Batteries – Offer a long cycle life, built-in BMS, and internal heating for reliable performance in various temperatures.
Easy Installation – Pre-drilled holes and included mounting hardware allow for quick and secure setup.
RICH SOLAR 1200 Watt Solar Kit Applications
- RVs and Campers – Provides off-grid power for appliances, lighting, and electronics during travel.
- Cabins and Tiny Homes – Ideal for remote locations lacking access to the power grid.
- Boats and Marine Use – Keeps batteries charged and powers onboard systems while at sea.
- Emergency Backup – Serves as a reliable power source during outages and natural disasters.
- Remote Worksites – Supplies energy for tools and equipment in off-grid job locations.

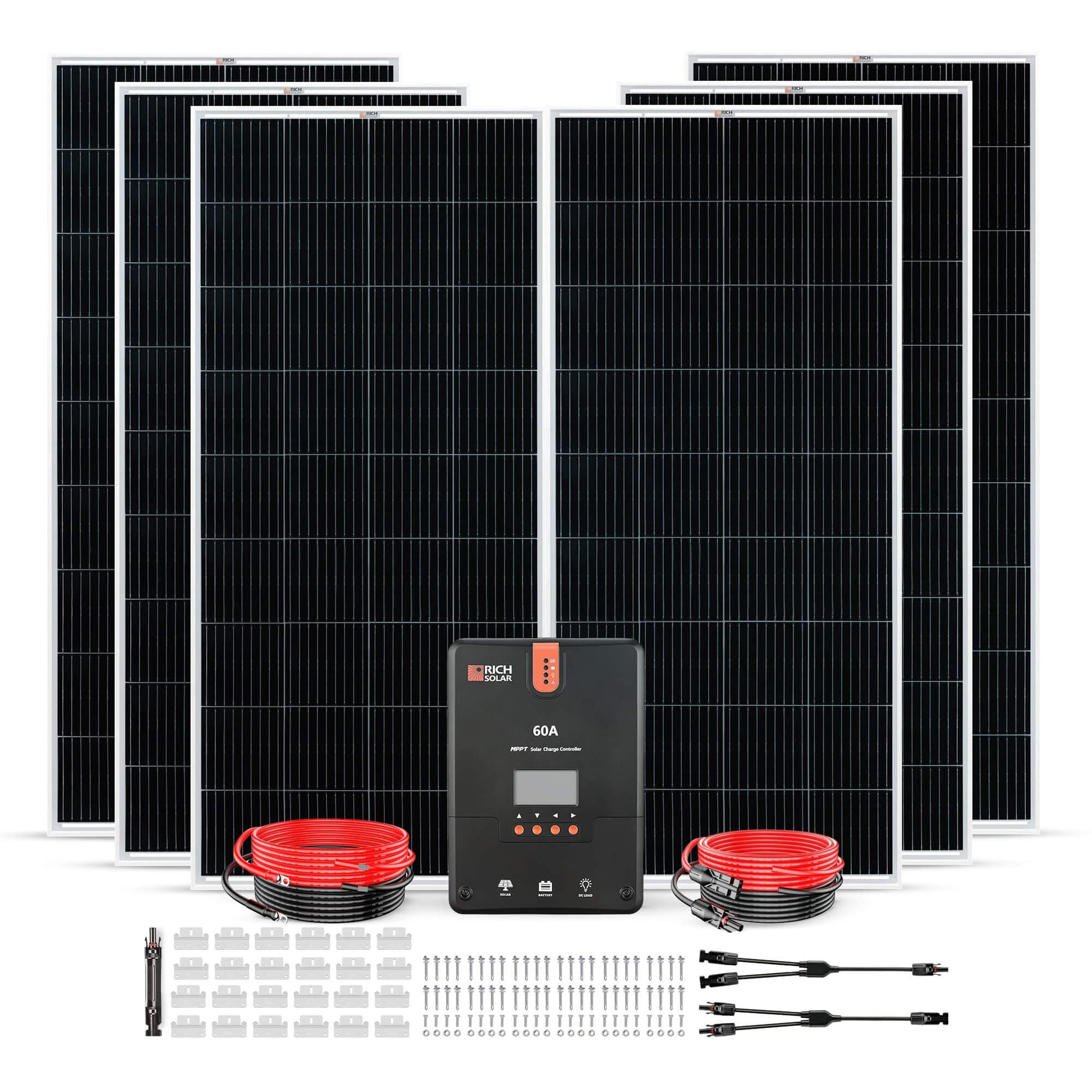

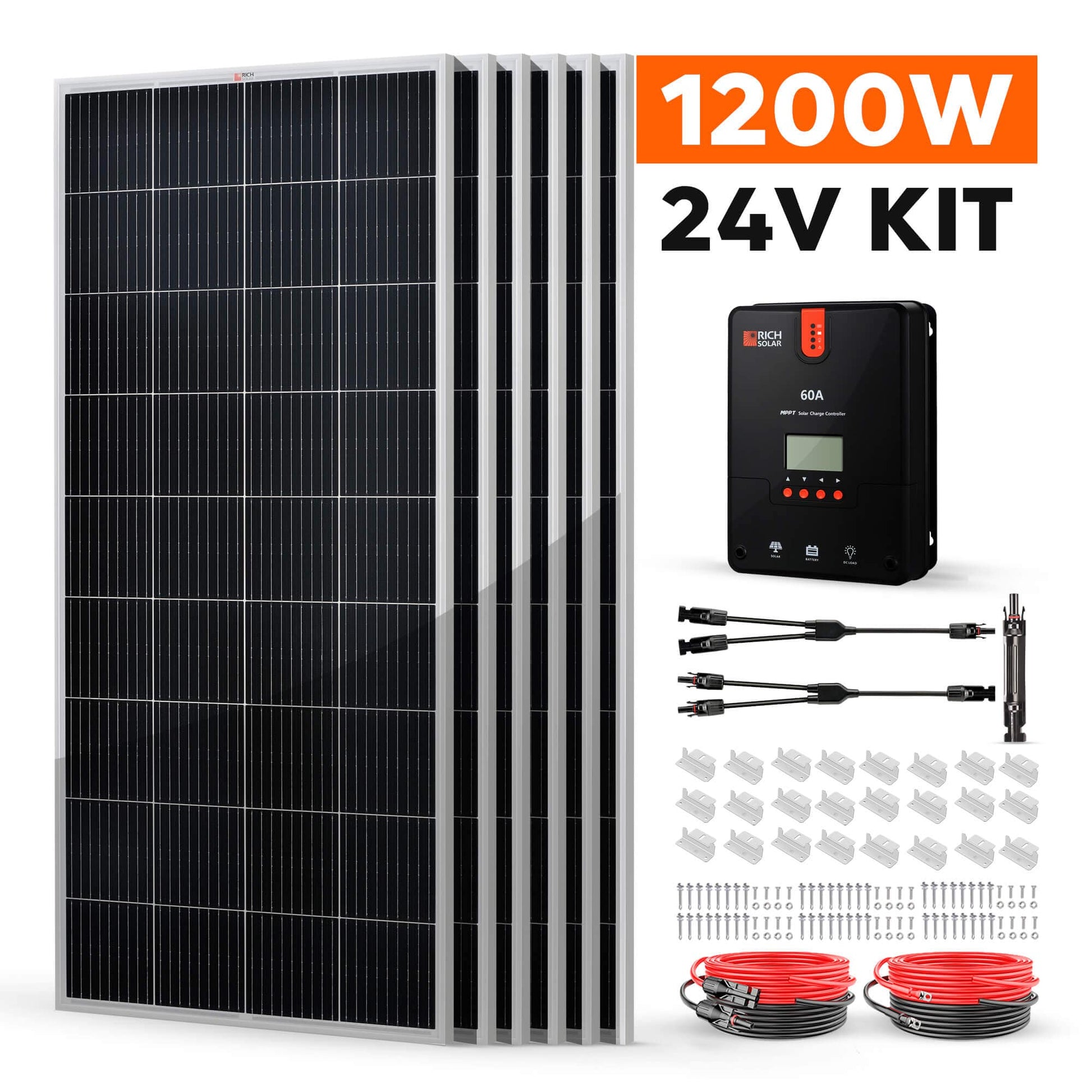

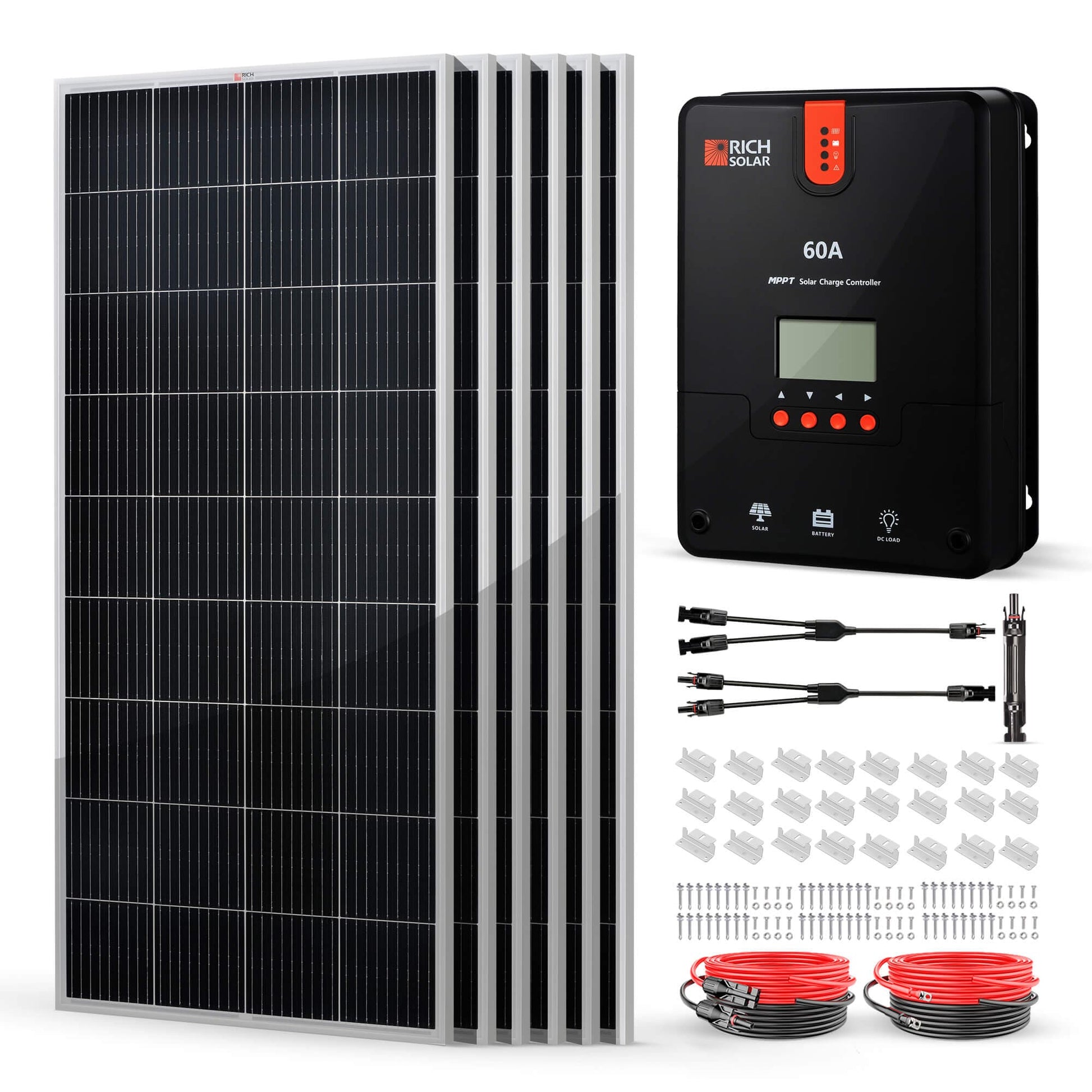

What's Included
Everything you need is included with your product.
- 6 x 200 Watt Monocrystalline Solar Panel(RS-M200)
- 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
- 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
- 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
- 6 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
- 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 x Y Branch Parallel Adapters(RS-Y2)
RICH SOLAR 1200 Watt Solar Kit Specifications
MEGA 200 Watt Solar Panel
| Category | Specifications |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Nominal Operating Cell Temp (NOCT) | 113 +/-35° F |
| Temperature Range | -40 ~ +185°F |
| Weight | 23.6 lbs |
| Dimensions | 58.7 x 26.8 x 1.2 in |
60 Amp MPPT Solar Charge Controller
| Category | Specifications |
| Rated Battery Current | 60A |
| Rated Load Current | 20A |
| Max Solar Input Voltage | 150V |
| Max Solar Input Power | 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Charge Circuit Voltage Drop | = 0.26V |
| Discharge Circuit Voltage Drop | = 0.15V |
| Operating Temperature | -31 °F to 113 °F |
| Max Terminal Size | 4AWG |
| Overall Dimensions | 11.2 x 8.1 x 4.0 in |
| Net Weight | 7.9 lb |
Frequently-Asked Questions
Can I expand this system in the future?
Yes, the system is designed to be expandable. You can add more panels and batteries as your energy needs increase.
Is the charge controller compatible with lithium batteries?
Yes, the included MPPT charge controller supports various battery types, including lithium, AGM, and lead-acid.
What tools are required for installation?
Basic tools like a drill and screwdriver are sufficient. All necessary mounting hardware and cables are included.
