RICH SOLAR 600 Watt Solar Kit
RICH SOLAR 600 Watt Solar Kit
Couldn't load pickup availability
RICH SOLAR 600 Watt Solar Kit
The RICH SOLAR 600 Watt Solar Kit is a comprehensive solution designed for off-grid applications, including RVs, cabins, boats, and remote work sites. Featuring three high-efficiency 200W monocrystalline panels and a 40A MPPT charge controller, this kit ensures optimal energy harvest even in low-light conditions. Its durable construction and user-friendly setup make it an excellent choice for both beginners and seasoned solar enthusiasts.
RICH SOLAR 600 Watt Solar Kit Features
High-Efficiency Monocrystalline Panels – Three 200W panels with 9 busbars each ensure maximum power output and performance.
Durable Construction – Tempered glass and aluminum frames provide long-lasting durability and resistance to harsh weather conditions.
Advanced MPPT Charge Controller – The 40A MPPT controller optimizes charging efficiency and supports various battery types.
Easy Installation – Pre-drilled holes and included mounting hardware allow for quick and secure setup.
Expandable System – Designed to accommodate additional panels and batteries as your power needs grow.
RICH SOLAR 600 Watt Solar Kit Applications
- RVs and Campers – Provides off-grid power for appliances, lighting, and electronics during travel.
- Cabins and Tiny Homes – Ideal for remote locations lacking access to the power grid.
- Boats and Marine Use – Keeps batteries charged and powers onboard systems while at sea.
- Emergency Backup – Serves as a reliable power source during outages and natural disasters.
- Remote Worksites – Supplies energy for tools and equipment in off-grid job locations.

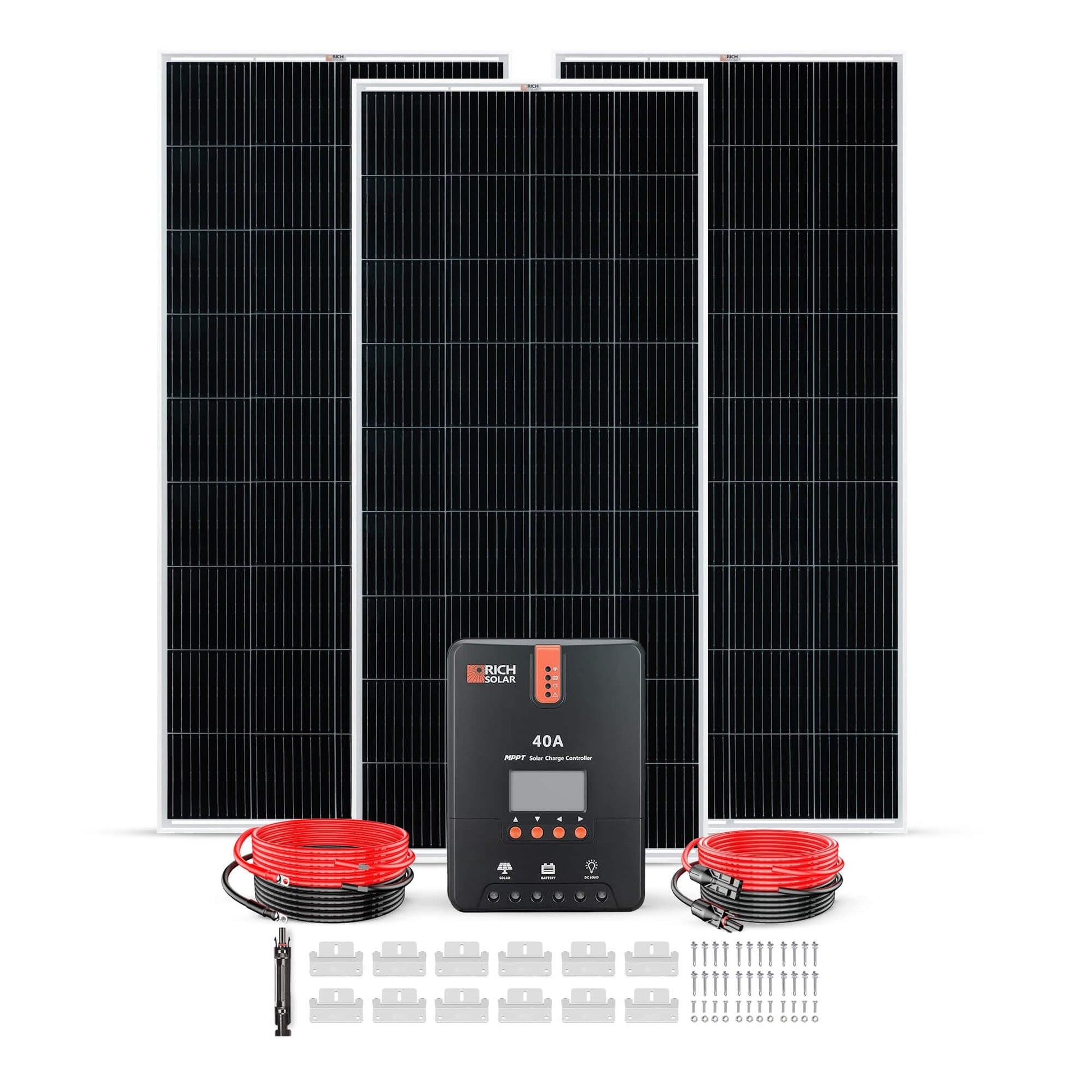

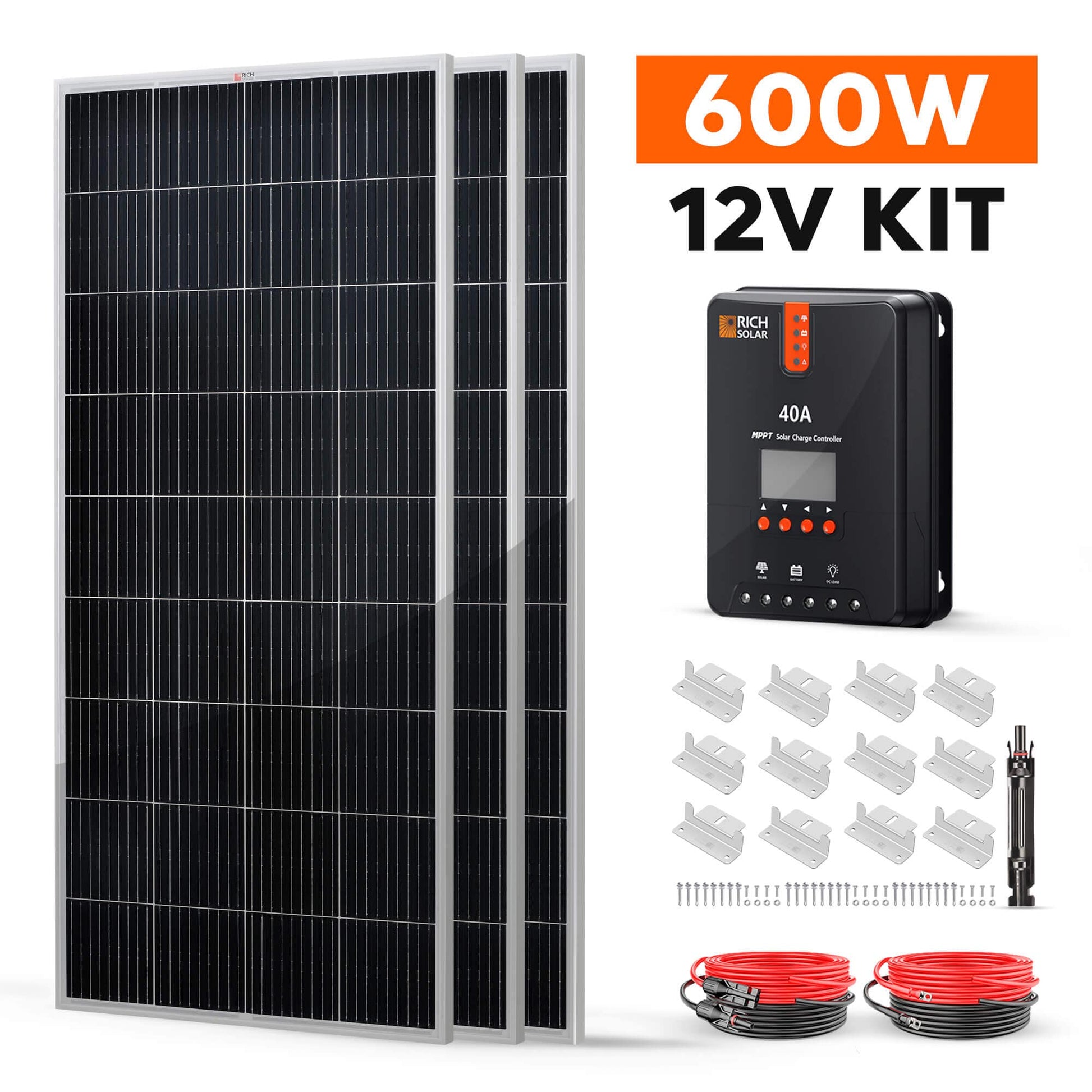

What's Included
Everything you need is included with your product.
- 3 x 200 Watt Monocrystalline Solar Panel(RS-M200)
- 1 x 40A MPPT Solar Charge Controller(RS-MPPT40P)
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
- 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery(RS-810)
- 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery(RS-810)
- 3 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
- 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)
RICH SOLAR 600 Watt Solar Kit Specifications
MEGA 200 Watt Solar Panel
| Category | Specifications |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Nominal Operating Cell Temp (NOCT) | 113 +/-35° F |
| Temperature Range | -40 ~ +185°F |
| Weight | 23.6 lbs |
| Dimensions | 58.7 x 26.8 x 1.2 in |
BRAVO 40 Amp MPPT Solar Charge Controller
| Category | Specifications |
| System Nominal Voltage | 12/24V Auto |
| Max. PV Open Circuit Voltage | 100VOC |
| Charging Technology | MPPT |
| Max PV Charging Current | 40A |
| Max. Recommended PV Input Power | 600 Watt (12V) / 1200 Watt (24V) |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.17kg / 2.58lb |
| Dimensions (L*W*H) | 195*142*74 mm / 7.7*5.5*2.9 in |
Frequently-Asked Questions
Can I expand this system in the future?
Yes, the system is designed to be expandable. You can add more panels and batteries as your energy needs increase.
Is the charge controller compatible with lithium batteries?
Yes, the included MPPT charge controller supports various battery types, including lithium, AGM, and lead-acid.
What tools are required for installation?
Basic tools like a drill and screwdriver are sufficient. All necessary mounting hardware and cables are included.
