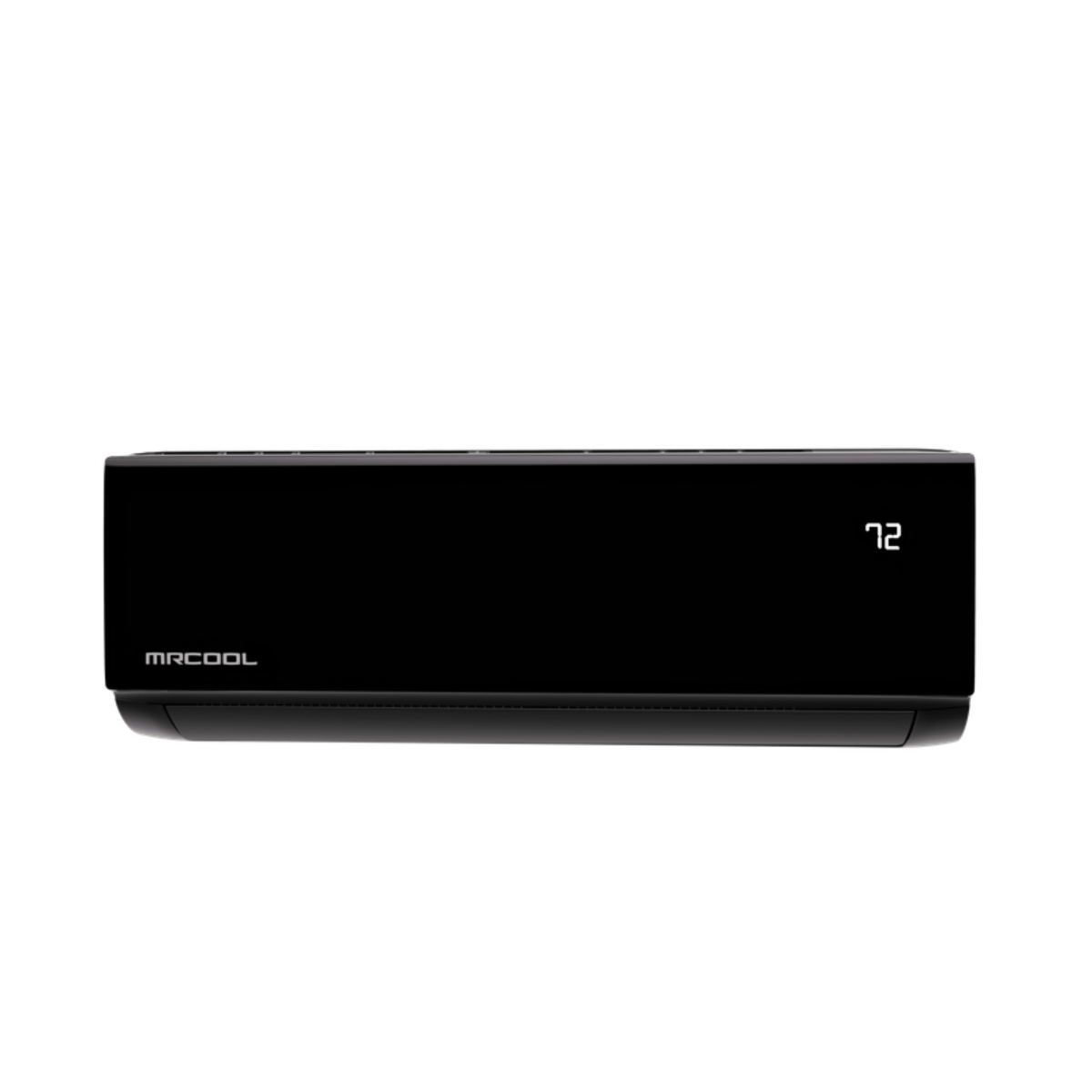

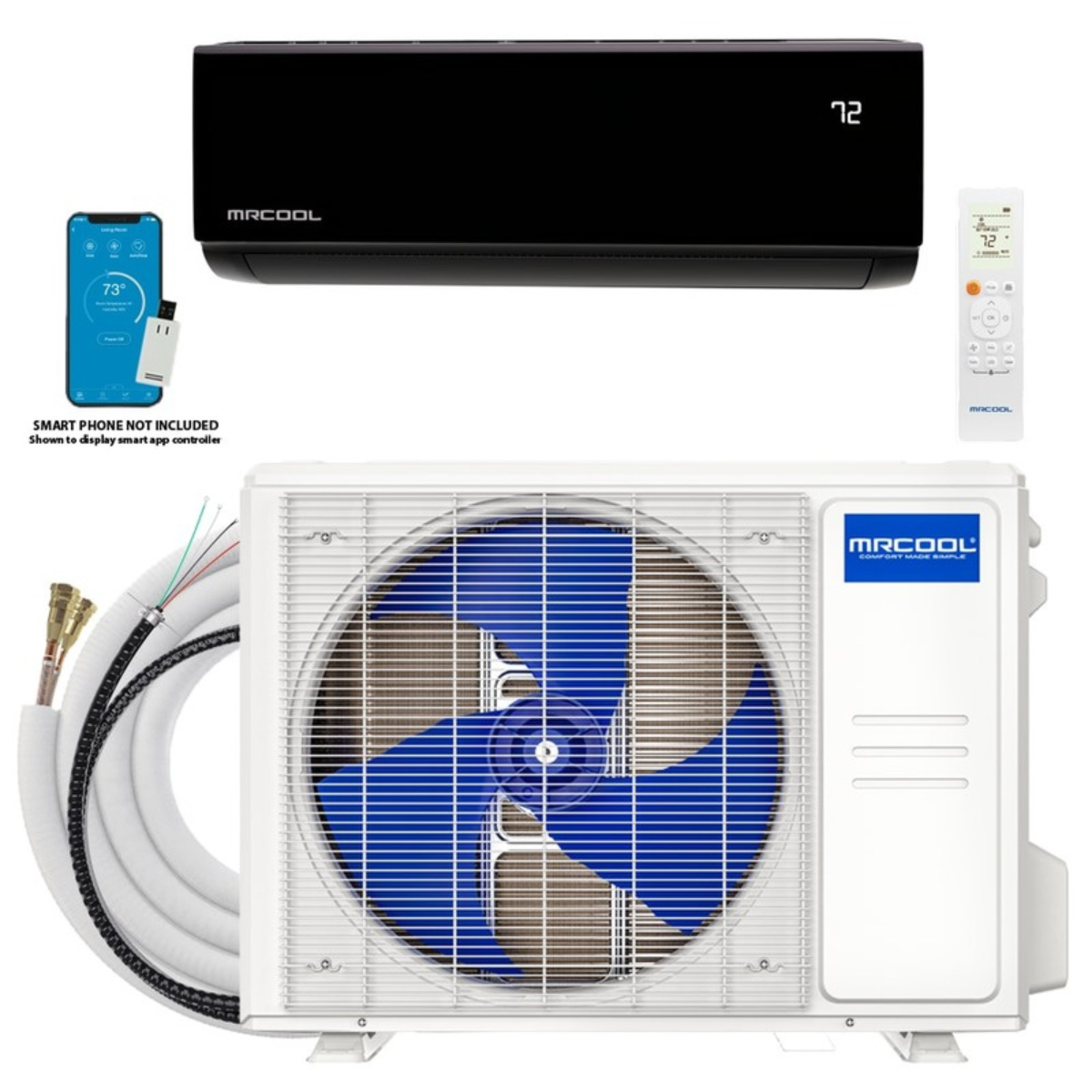

MRCOOL DIY Select 9,000 BTU 115V Complete DIY Mini-Split System — Black Air Handler

MRCOOL DIY Select 9,000 BTU 115V Complete DIY Mini-Split System — Black Air Handler

$1,470.00 USD
$1,549.00 USD $1,470.00 USD
Sale Sold out
Total Line Set Length
Purchasing is paused This product remains under technical and commercial review. Add to cart is disabled in the development storefront.
Verify before purchaseConfirm the exact model, circuit, installation requirements, building load, and any inverter, battery, generator, or solar-system constraints.
View full details
Technical data under review This product record is not ready for publication. Conflicted or incomplete fields are intentionally omitted.

At a glance

Key system facts

Series
MRCOOL DIY Select
Source:mc-diy-SELECT-br-en.pdf, PDF p. 4
Nominal voltage
115 V, single phase, 60 Hz
Source:mc-diy-SELECT-br-en.pdf, PDF p. 4
Refrigerant
R-454B
Source:mc-diy-SELECT-br-en.pdf, PDF p. 4

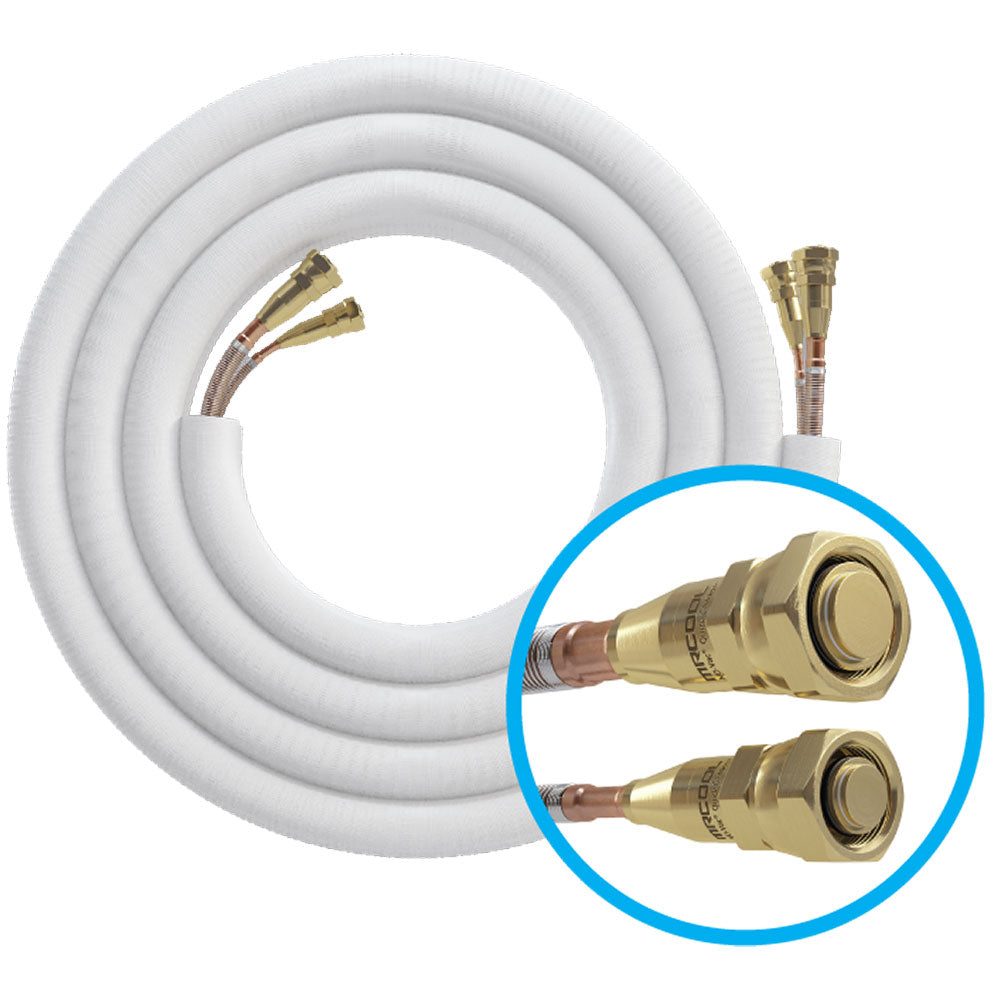

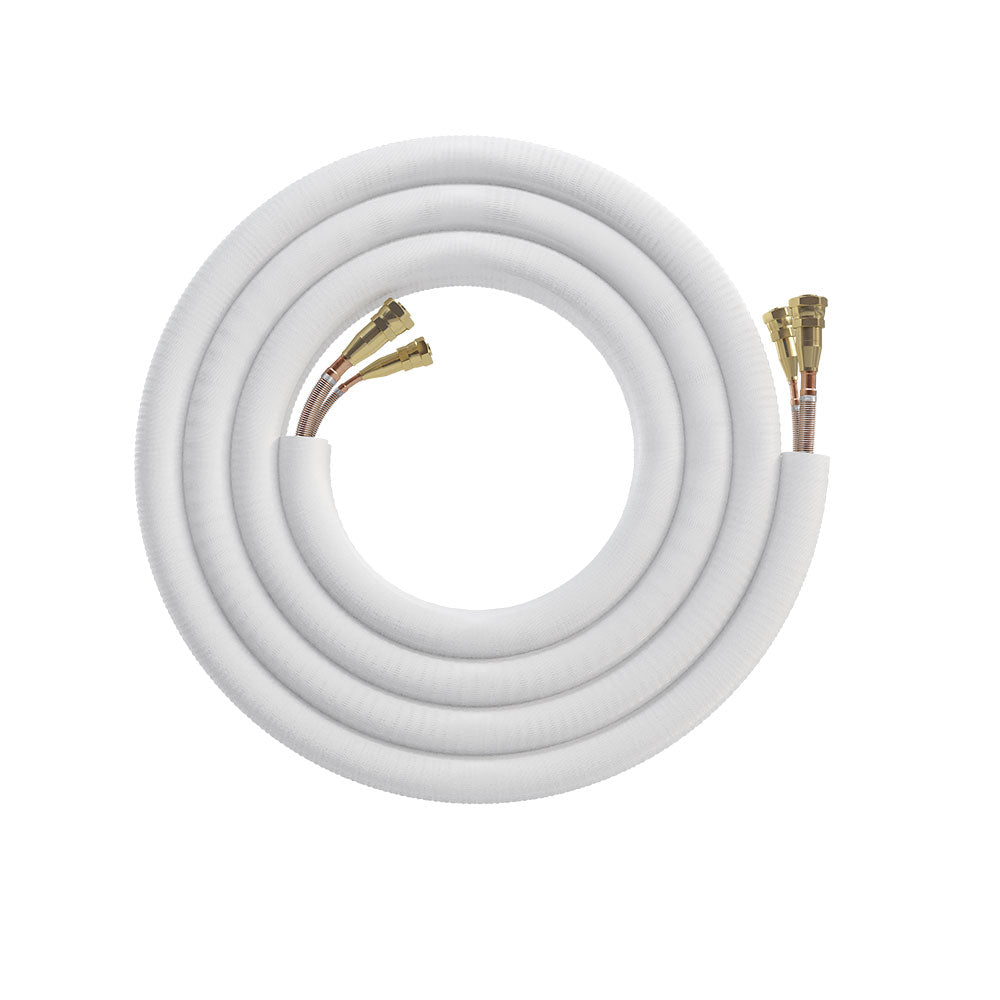

Included line set
11.5 ft standard included pre-charged line set
Source:mc-diy-SELECT-br-en.pdf, PDF p. 3
Electrical planning Nominal voltage does not establish energy use or compatibility with a battery, inverter, generator, solar array, cord, or existing circuit. Use exact model data and qualified electrical guidance.

Manufacturer data

Technical specifications

Values are shown with their controlling source. Held conflicts are not presented as resolved facts.
Electrical
Voltage / phase / frequency 115 / single phase / 60 V / Hz Source: mc-diy-SELECT-br-en.pdf, PDF p. 4
Indoor MCA / maximum fuse 3 / 15 A Source: mc-diy-SELECT-br-en.pdf, PDF p. 4
Outdoor MCA / maximum fuse 17 / 20 A Source: mc-diy-SELECT-br-en.pdf, PDF p. 4
Efficiency
SEER2 / EER2 / HSPF2-4 / HSPF2-5 17.5 / 9.8 / 8.8 / 6.8 Source: mc-diy-SELECT-br-en.pdf, PDF p. 4 The manufacturer labels this specification preliminary; it is not an independent certification.
Refrigeration
Factory refrigerant charge 17.28 oz Source: mc-diy-SELECT-br-en.pdf, PDF p. 4
Installation
Standard included line-set length 11.5 ft Source: mc-diy-SELECT-br-en.pdf, PDF p. 3
Maximum line length Requires confirmation Source: mc-diys-sm-en-01.pdf, PDF p. 11 The service table lists 75 ft, but its model suffix doesn't match this system. Confirm the maximum length before planning the route.
Physical

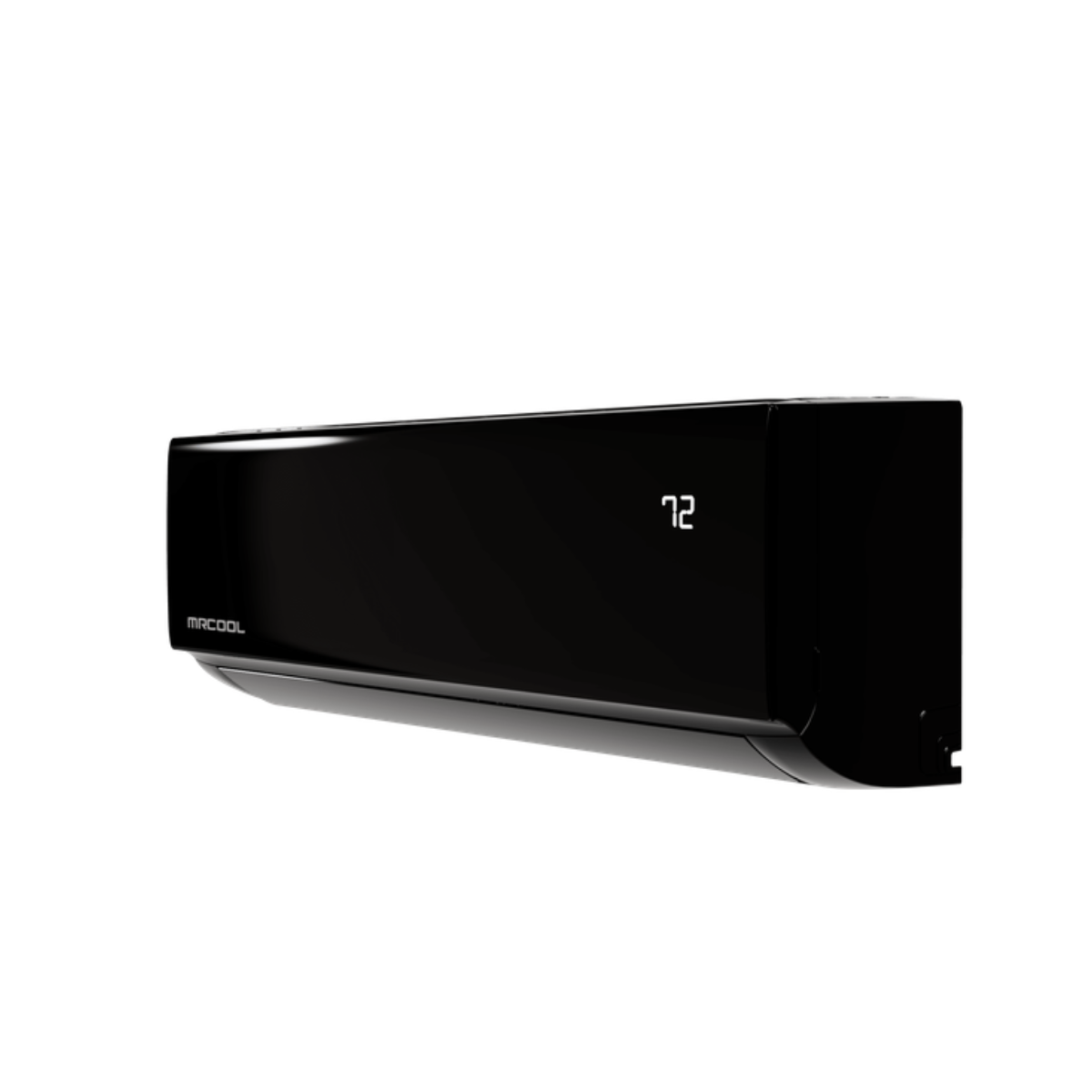

Indoor unit dimensions (W × D × H) 28.70 × 7.87 × 11.50 in Source: mc-diy-SELECT-br-en.pdf, PDF p. 4

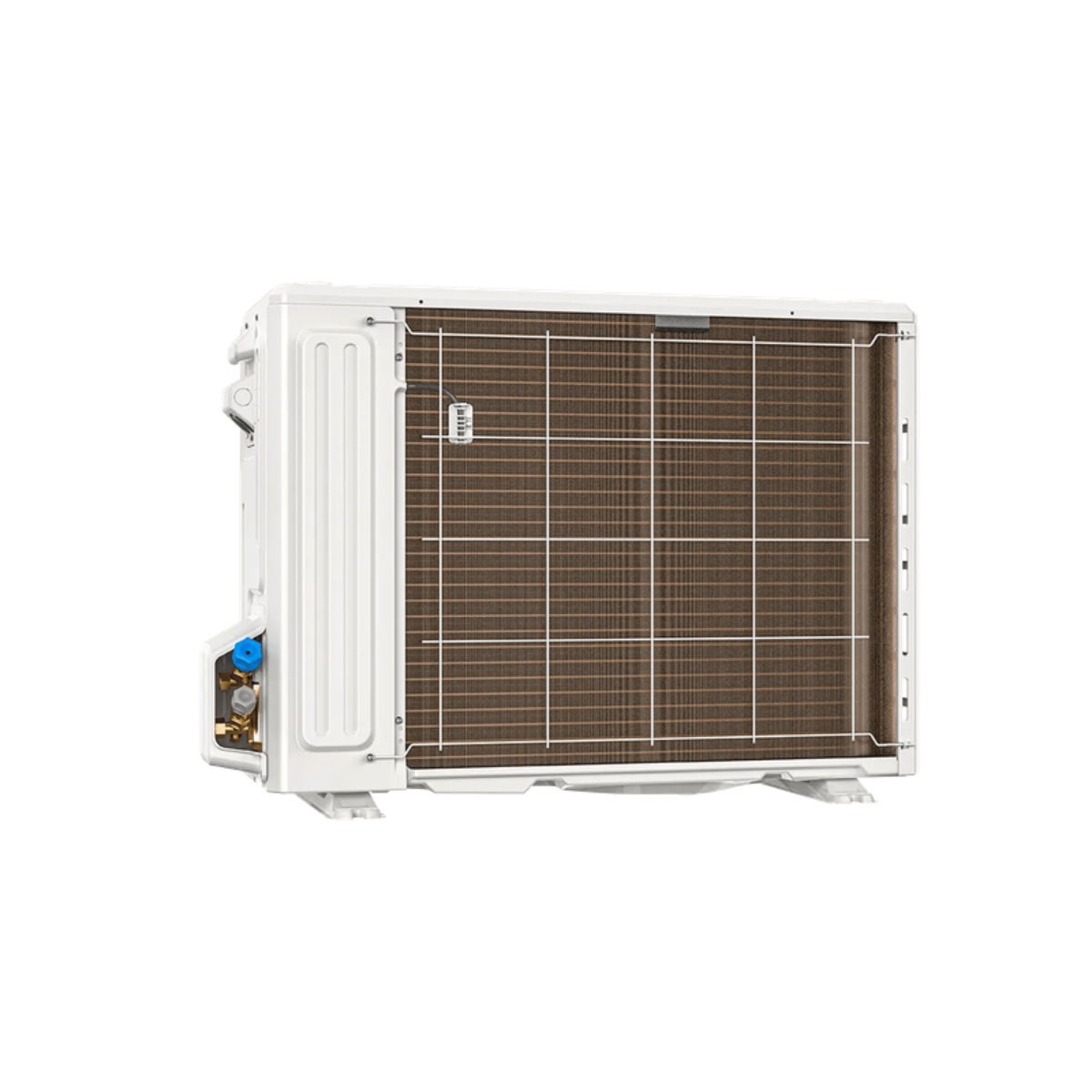

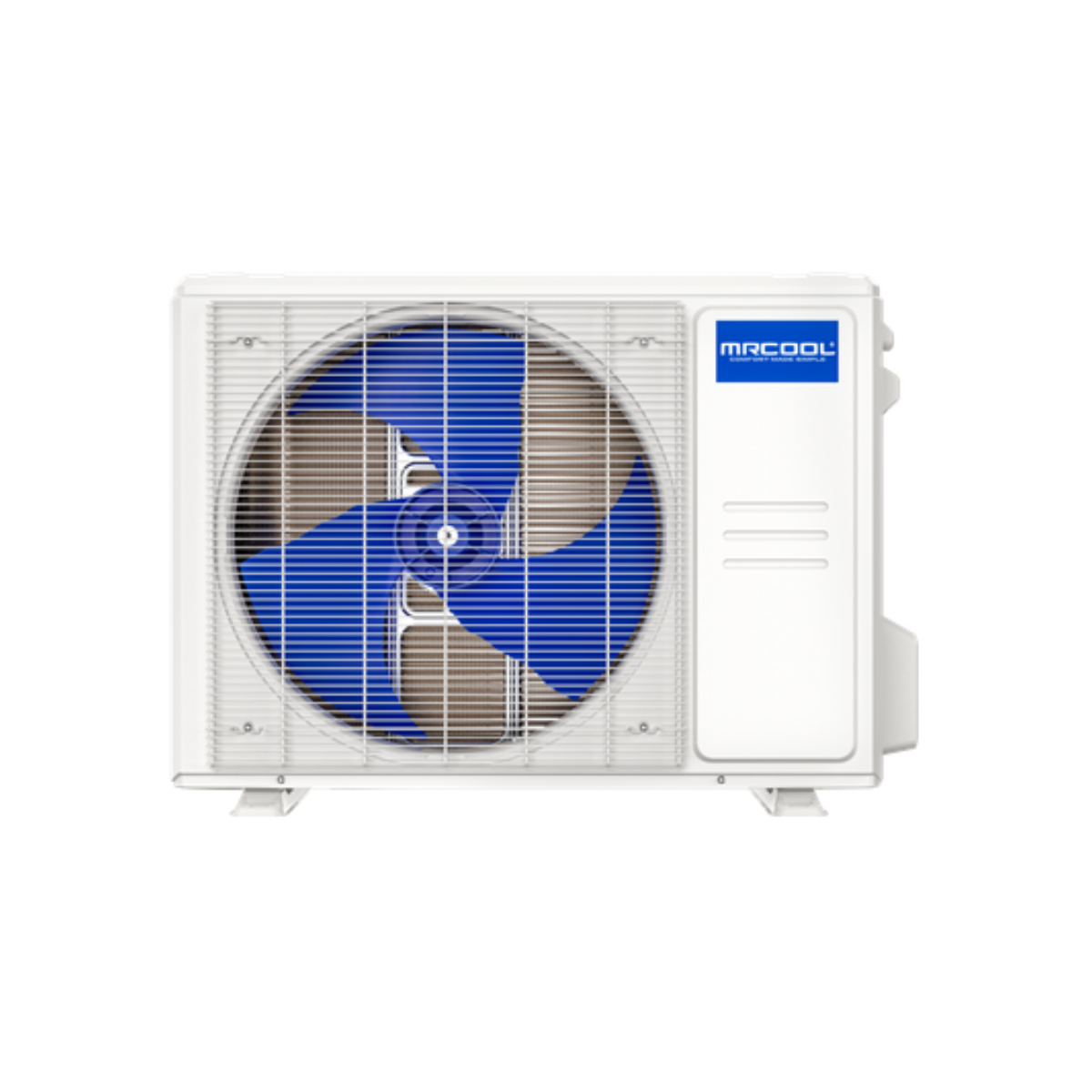

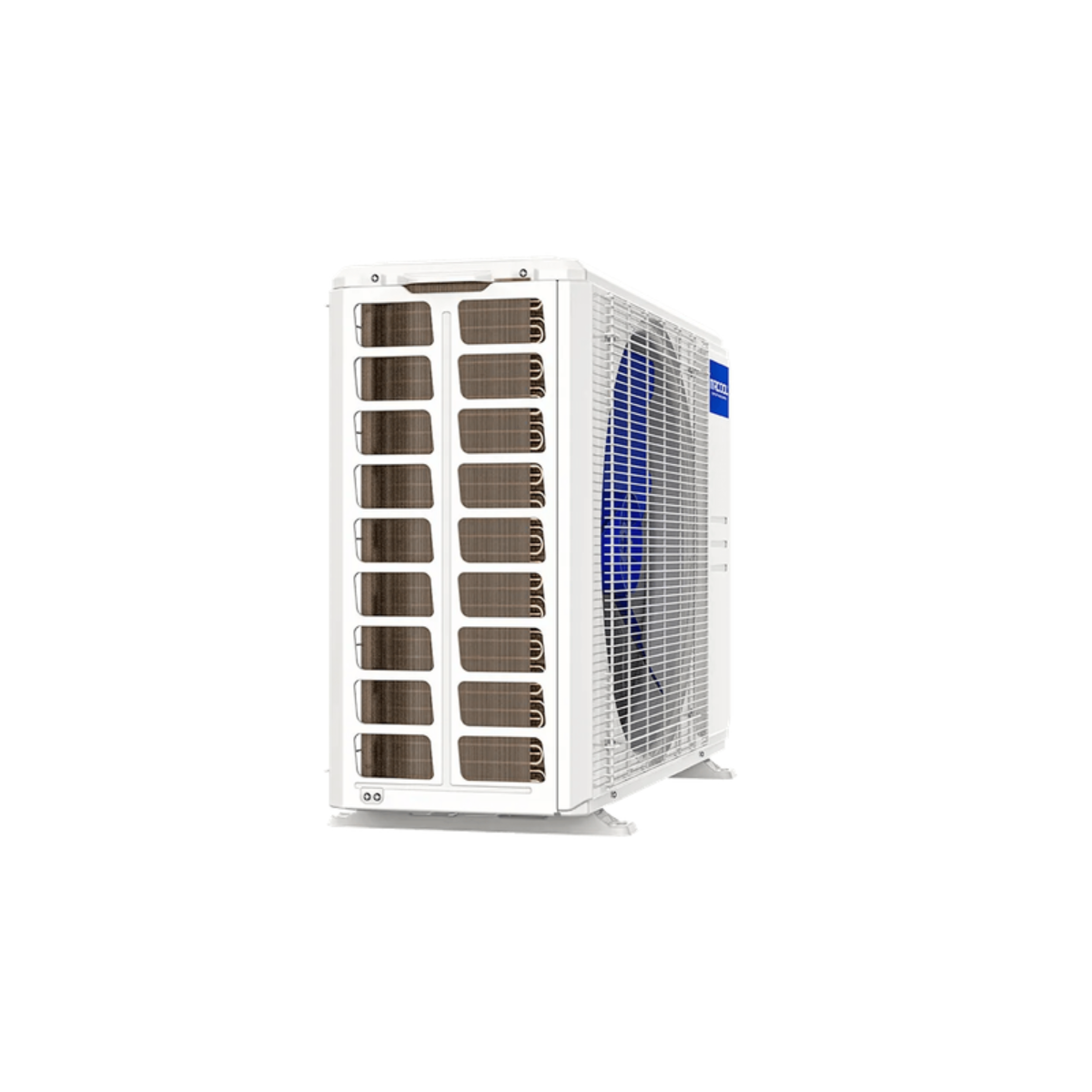

Outdoor unit dimensions (W × D × H) 28.35 × 10.63 × 19.49 in Source: mc-diy-SELECT-br-en.pdf, PDF p. 4
Indoor unit net / gross weight 23.81 / 33.95 lb Source: mc-diy-SELECT-br-en.pdf, PDF p. 4
Outdoor unit net / gross weight 54.67 / 66.58 lb Source: mc-diy-SELECT-br-en.pdf, PDF p. 4

Read before purchase

Manuals and documents

  • MRCOOL DIY Select R-454B brochure Brochure and preliminary specification table · mc-diy-SELECT-br-en.pdf MRCOOL DIY Select · English

    Covers black and white 9k/12k DIY Select components. Some supplied documents use different model suffixes, so check the exact model numbers on the product page.

    Open document
  • MRCOOL DIY Select installation and owner's manual Installation and owner's manual · mc-diys-5-sz-im-um-en.pdf MRCOOL DIY Select · English

    Installation reference for white and black 9k/12k DIY Select components. Follow the manual's safety instructions and requirements for qualified installation work.

    Open document
  • MRCOOL DIY Select service manual Service manual · mc-diys-sm-en-01.pdf MRCOOL DIY Select · English

    This service manual is written for trained personnel. Shortened D-suffix labels inside the manual don't replace the full component model numbers shown on the product page.

    Open document
  • MRCOOL DIY Select limited warranty Limited warranty · mc-diys-5-wr-en.pdf MRCOOL DIY Select · English

    Warranty reference for the black and white DIY Select components listed in the document. Read the full warranty for all terms and requirements.

    Open document
